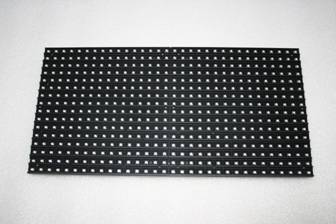

P7.62室内三合一led全彩屏 （参数）

模组规格书

MODULE SPECIFICATION

                                                            广州臻视特光电---WWW.ZSTLED.COM

编号（NO.）: P7F01M-084S-V1.1 类型（Type）:户内模组（Indoor type ）

像素间距（Pitch）:7.62mm          LED规格（LED spec）:SMD3528

亮度（Brightness）:1100Nits

驱动方式（Driver fashion）：1/8扫 （1/8 Duty constant current）

模组结构（Module structure）:灯驱合一（Combined diver board）

一模组特点(Module Features)

◆7.62mm像素间距，R、G、B三种颜色的晶片封装在一个胶体内组成单个像素，混色性能较好，显示密度高达17222pixels/sqm；

With the smaller pixel pitch, three vertically arranged of R G B lamp which constitute a single pixel makes better color performance and the density can reach 17222pixels/sqm.

◆32*16显示分辨率、244mm*122mm模组尺寸，灯驱合一结构，可靠性高；

With the resolution of 32*16, module size of 244mm*122mm, the structure of combined driver board ensures the high reliability.

◆视角大，显示图象柔和，像素密度大，适合室内观看；

With larger view angel, soft image, high definition which is suitable for indoor application.

◆超高亮、低衰减、高可靠性、一致性好、高耐候性；

With the features of super brightness, low attenuation, high reliability, good consistency、and high weather ability.

◆效果无颗粒状，匀色性较好，无马赛克现象；

With the effect of non-granular, better color uniformity, non-mosaic phenomenon.

◆多层电路板结构设计，电流分布均匀，功耗小、散热快，有效延长屏的寿命，可靠性高；

With the design of multi-layer circuit board makes the uniform of current distribution, quick heat dispelling, long life span and high reliability.

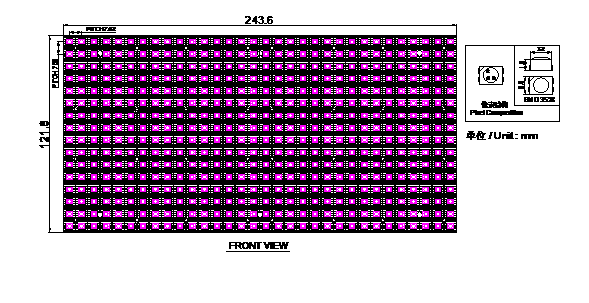

二 模组机械尺寸（Module Dimensions）

三 模组数据接口（Module Data Interface）

四 主要技术指标（Main Technical Parameters）
